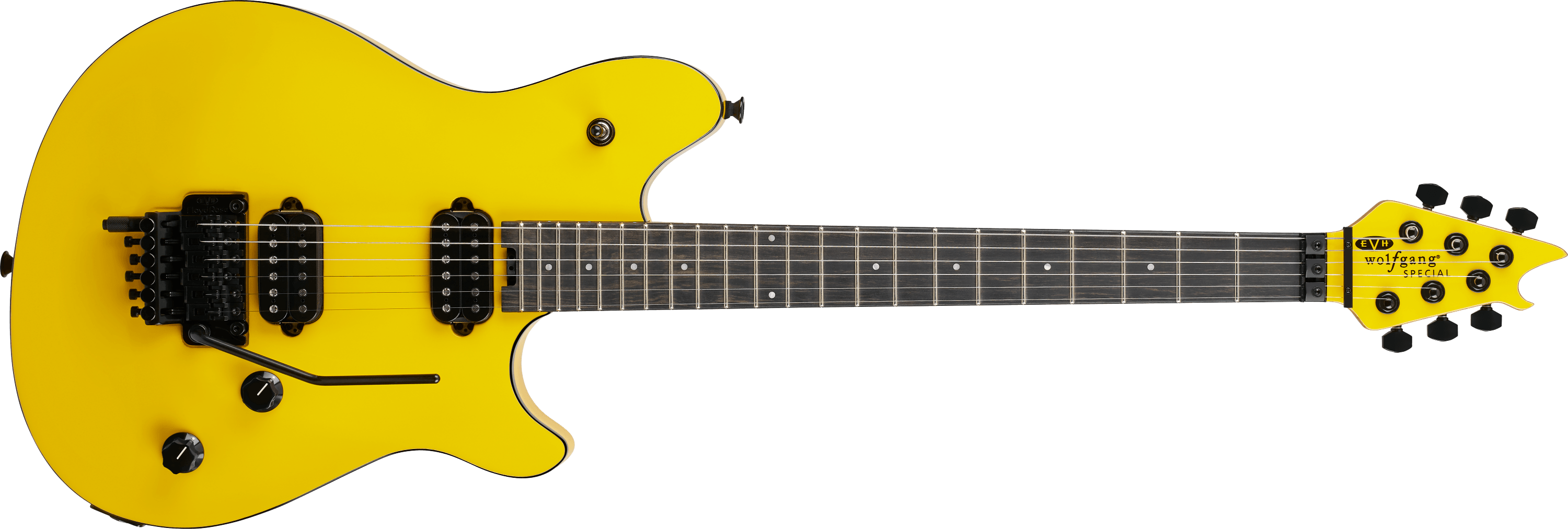

Wolfgang® Special, Baked Maple

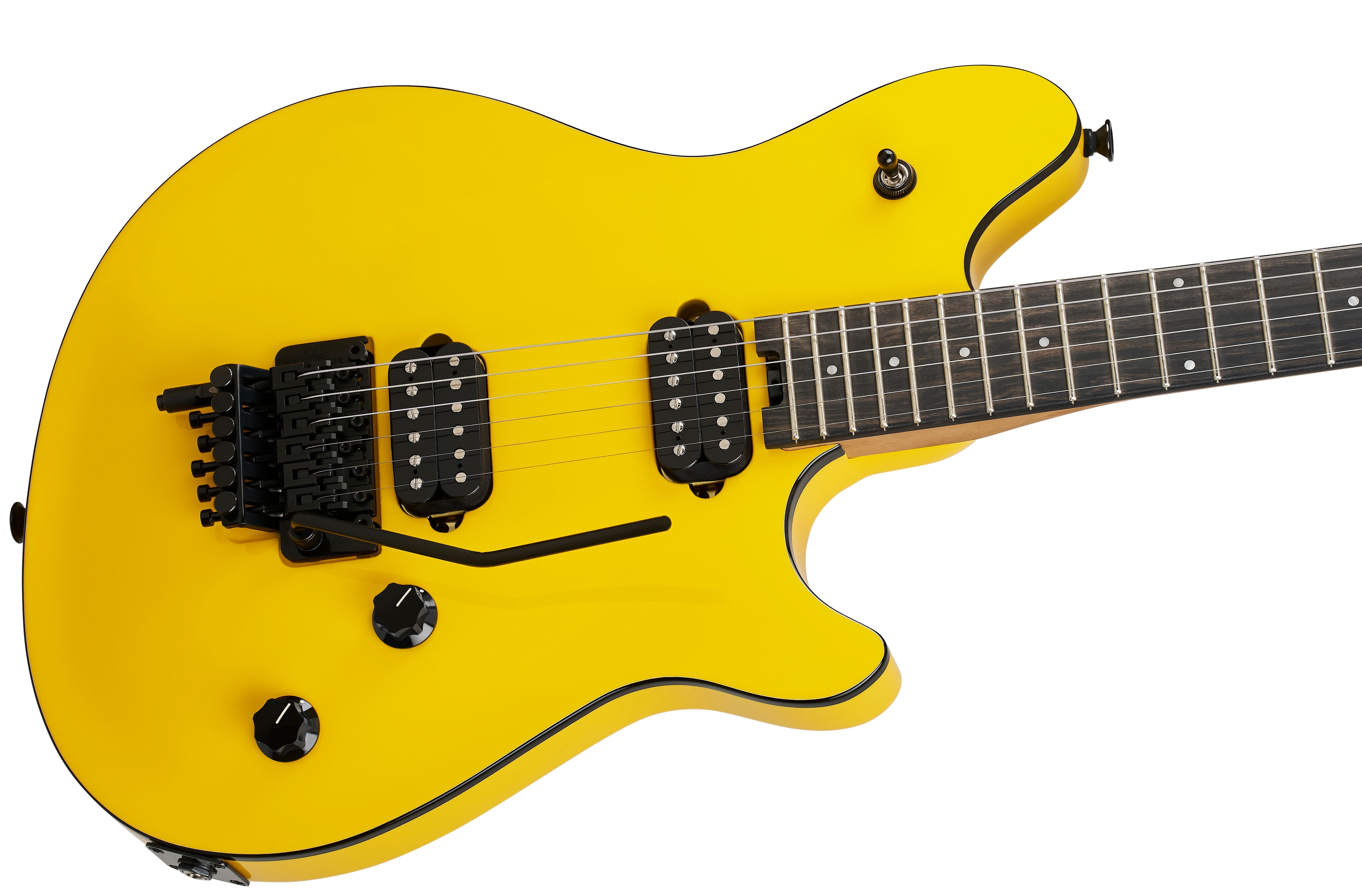

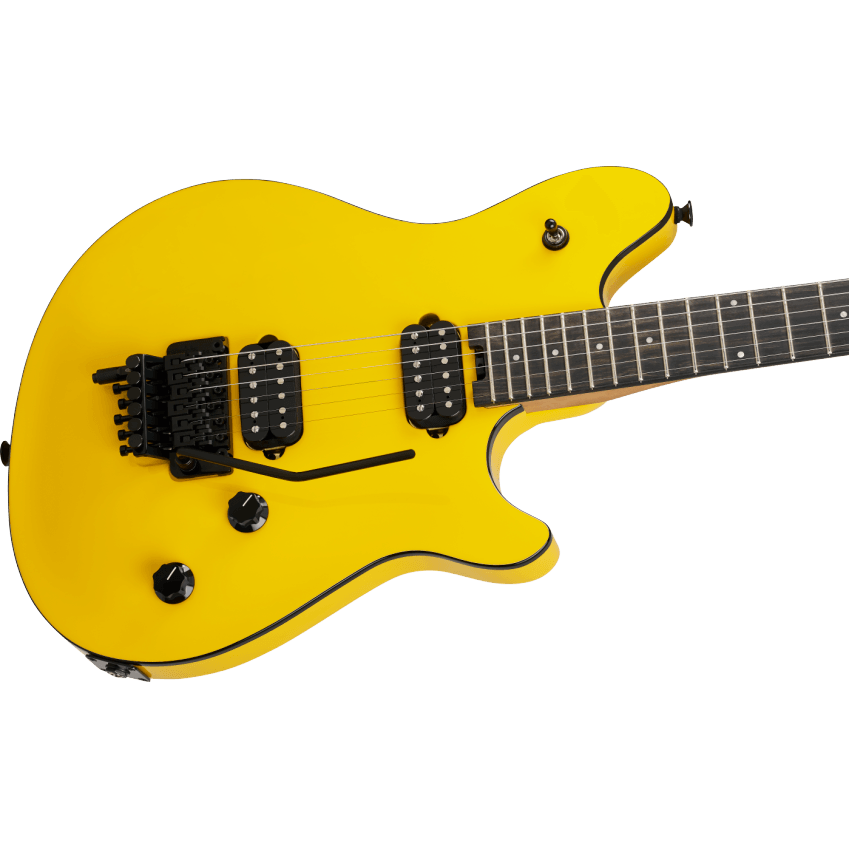

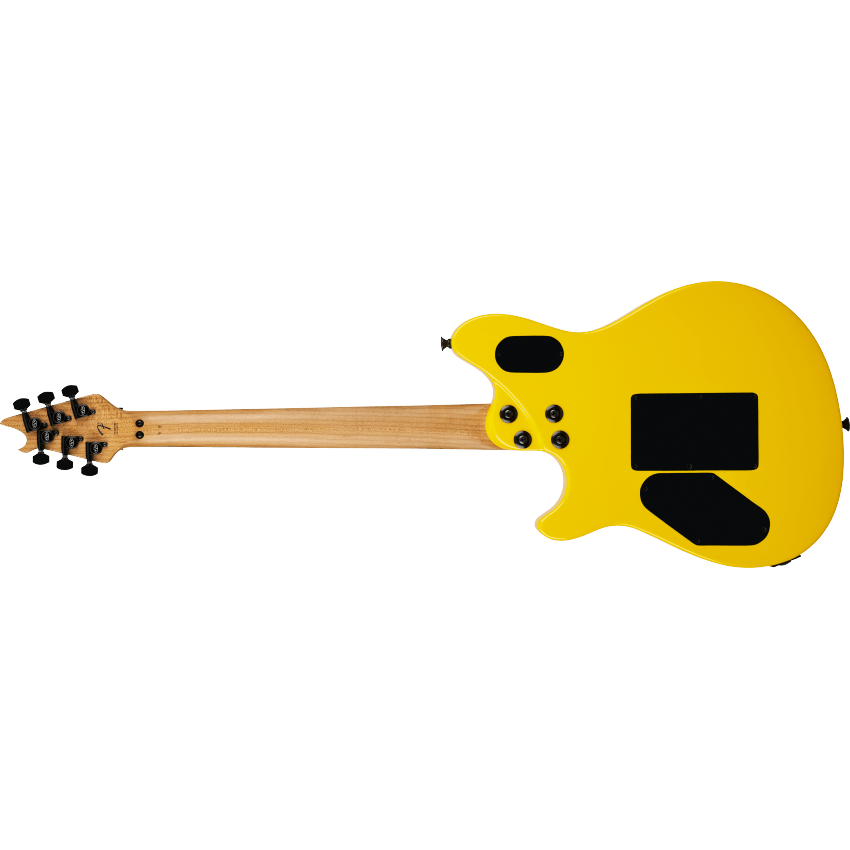

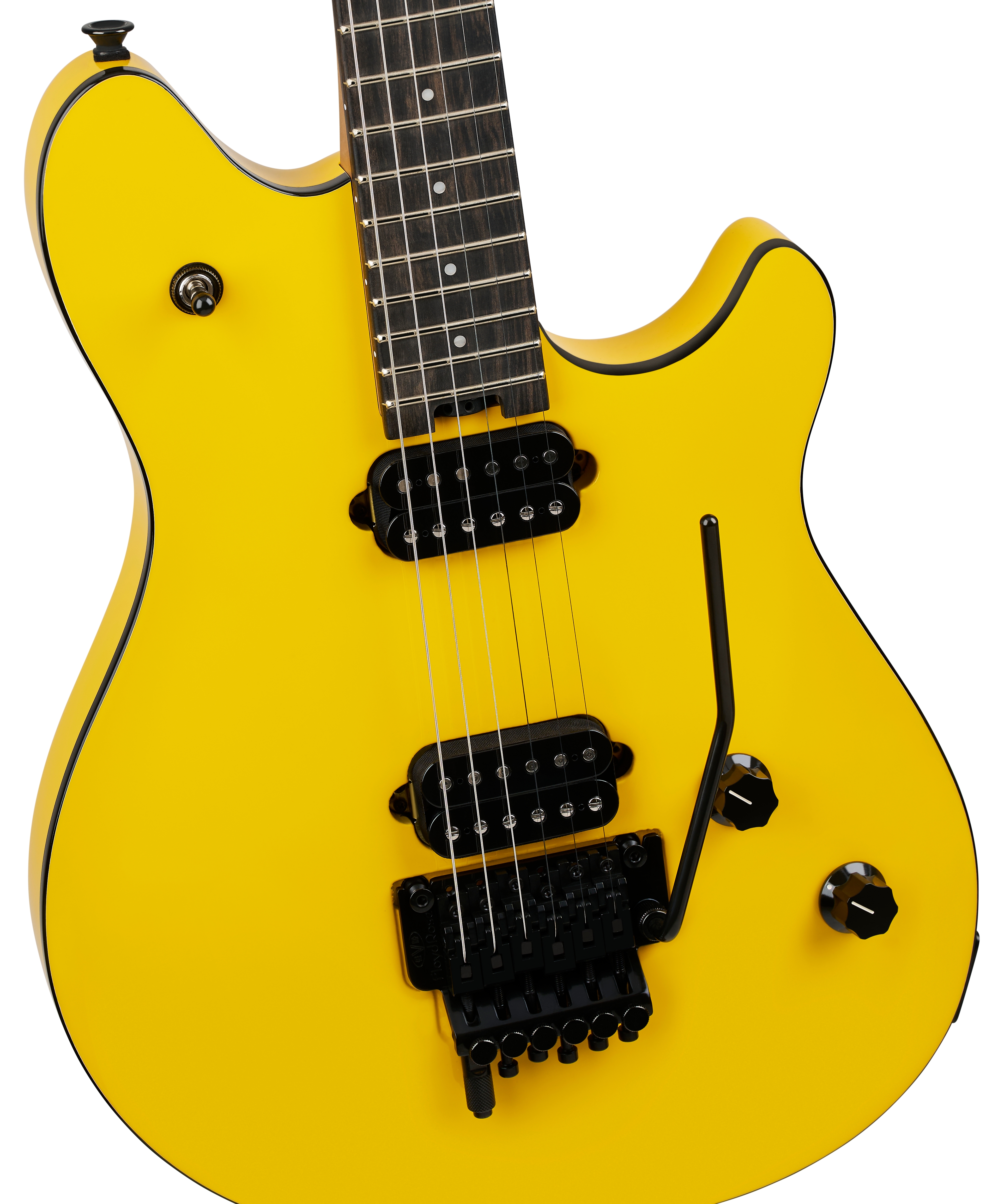

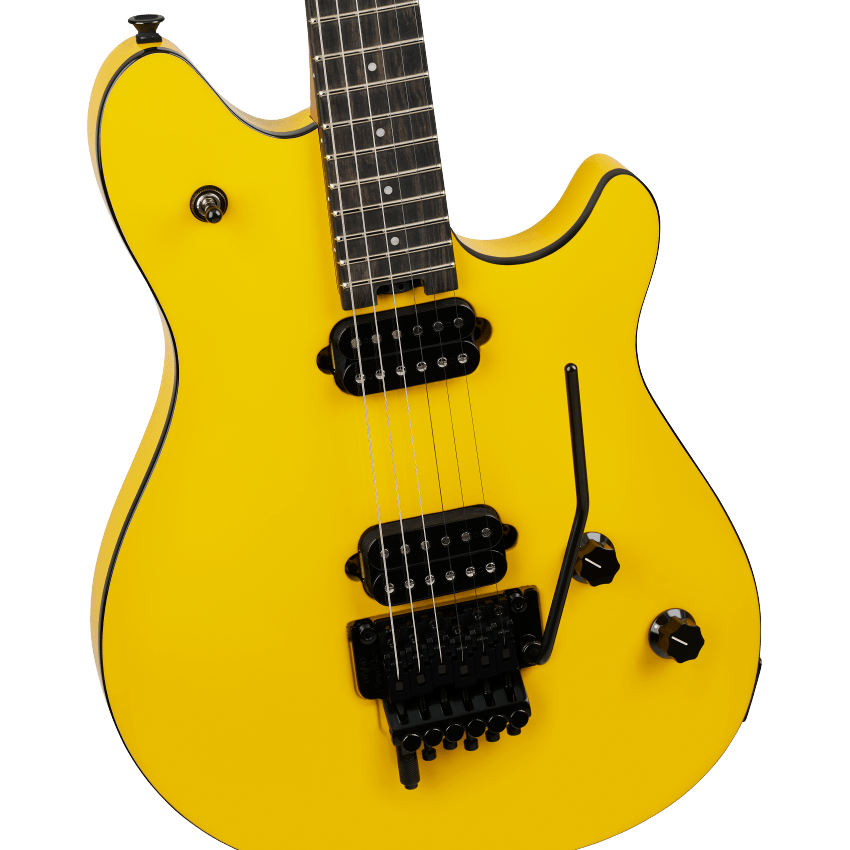

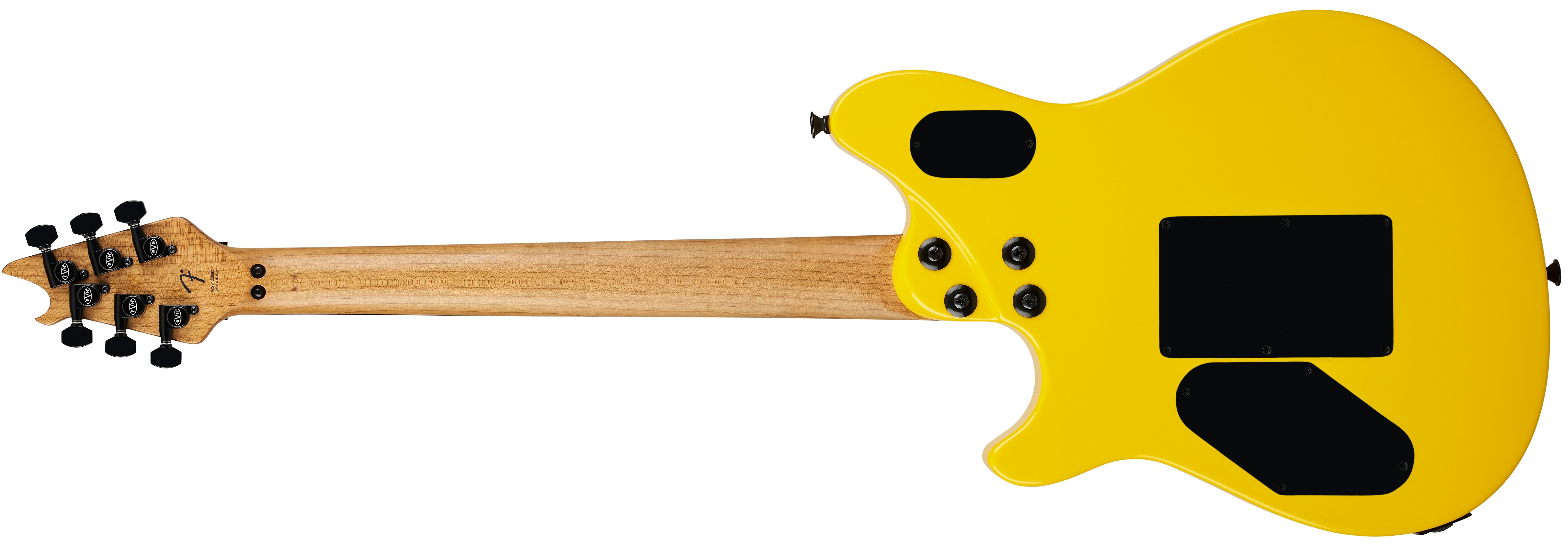

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius ebony fingerboard, (baked maple on Gloss Black), has 22 jumbo frets and pearloid dot inlays (black on Gloss Black). Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck. A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting. Available in Smoked Mesquite, Caution Yellow, Ivory, and Stealth Black with baked maple necks and ebony fingerboards as well as Gloss black with a baked maple neck and fingerboard. EVH Wolfgang / Striped Series Gig Bag Included!
- Color Caution Yellow
- Model 5107701304
- Series Wolfgang® Special
-
United States of America $1,499.99 EST. U.S. STREET
Specs
General
| Model Number | 5107701304 |
|---|---|
| Series | Wolfgang® Special |
| Color | Caution Yellow |
| Number of Strings | 6 |
| Orientation | Right-Hand |
Body
| Body Finish | Gloss Urethane |
|---|---|
| Body Shape | Wolfgang® |
| Body Material | Basswood |
| Body Binding | 1-Ply Cream |
Electronics
| Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
|---|---|
| Neck Pickup | Direct Mount EVH® Wolfgang® Humbucking |
| Pickup Color | Black |
| Controls | Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot) |
| Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
| Pickup Configuration | HH |
Neck
| Neck Material | Quartersawn Baked Maple |
|---|---|
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Thickness | .805" at 3rd & .890" at 12th Fret |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | Wolfgang® Backshape |
| Scale Length | 25.5" (648 mm) |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Ebony |
| Number of Frets | 22 |
| Fret Size | Jumbo |
| Nut Material | Floyd Rose® R2 Locking |
| Nut Width | 1.625" (41.3 mm) |
| Position Inlays | Pearloid Dot |
| Side Dots | Pearloid |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Truss Rod Wrench | 2.5 mm Hex |
| String Trees | Floyd Rose® Retainer Bar |

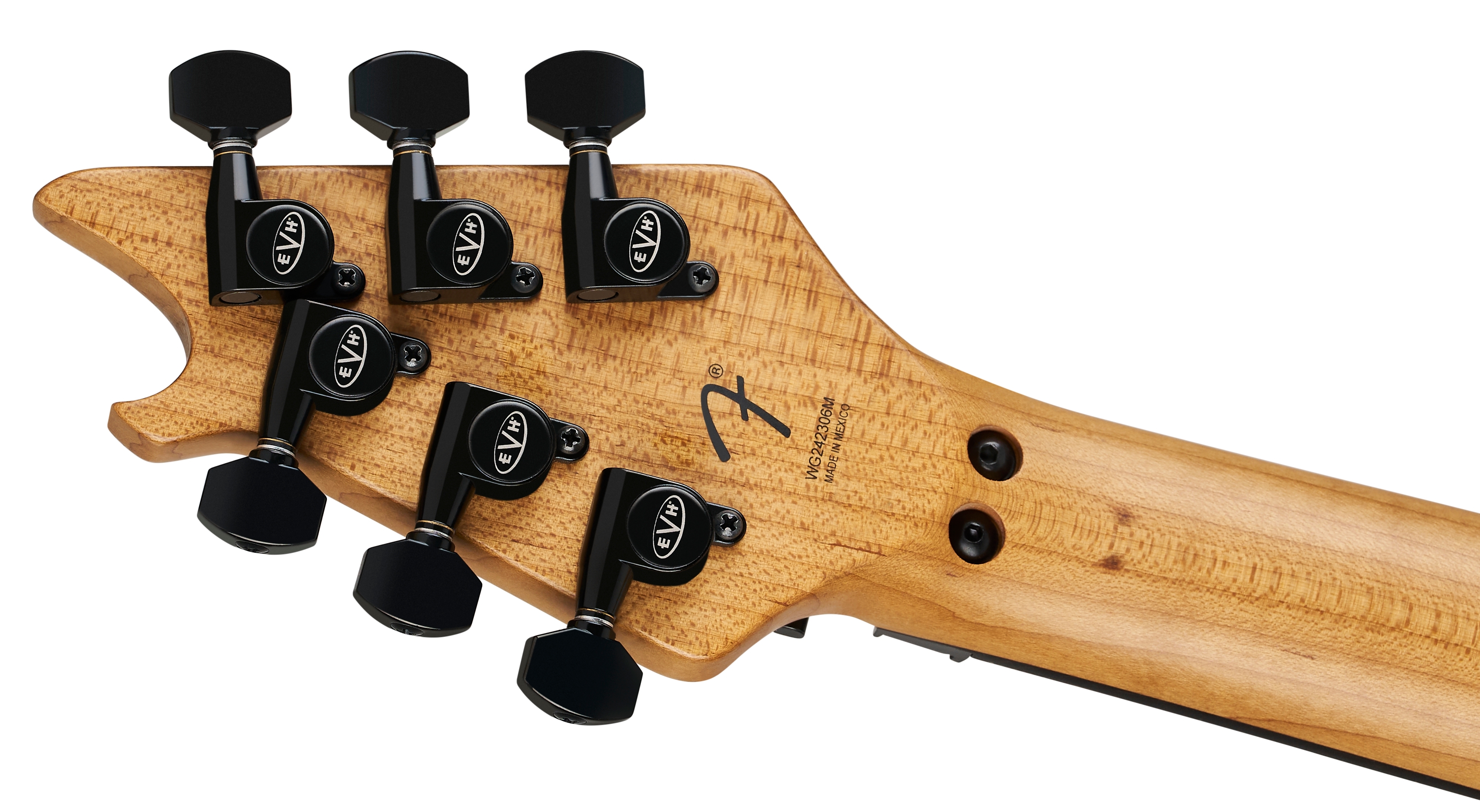

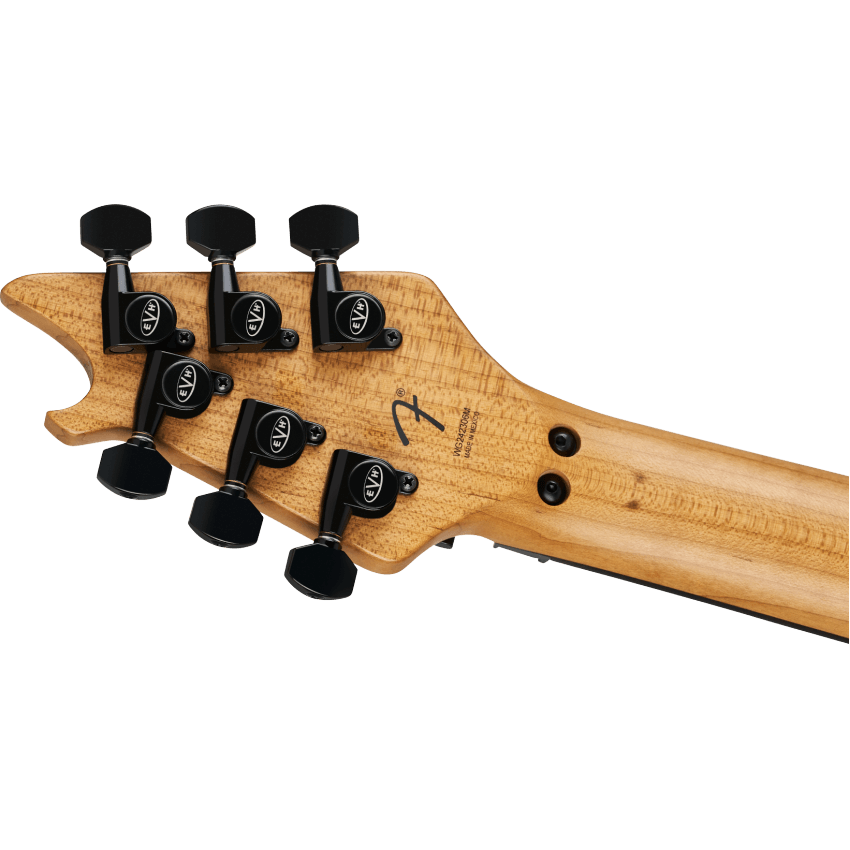

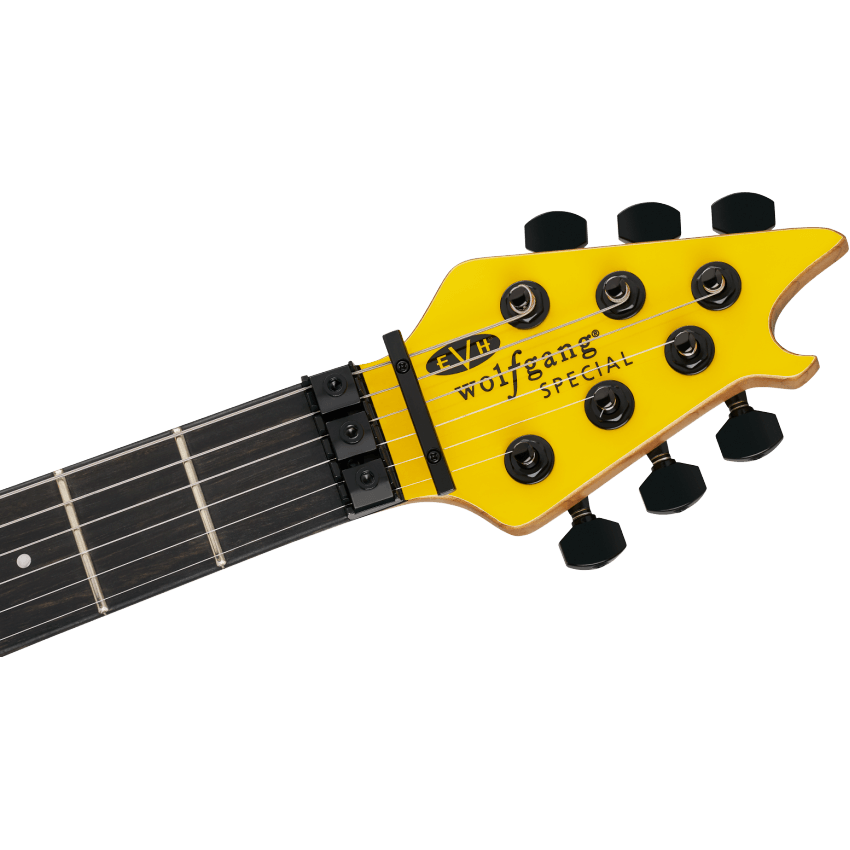

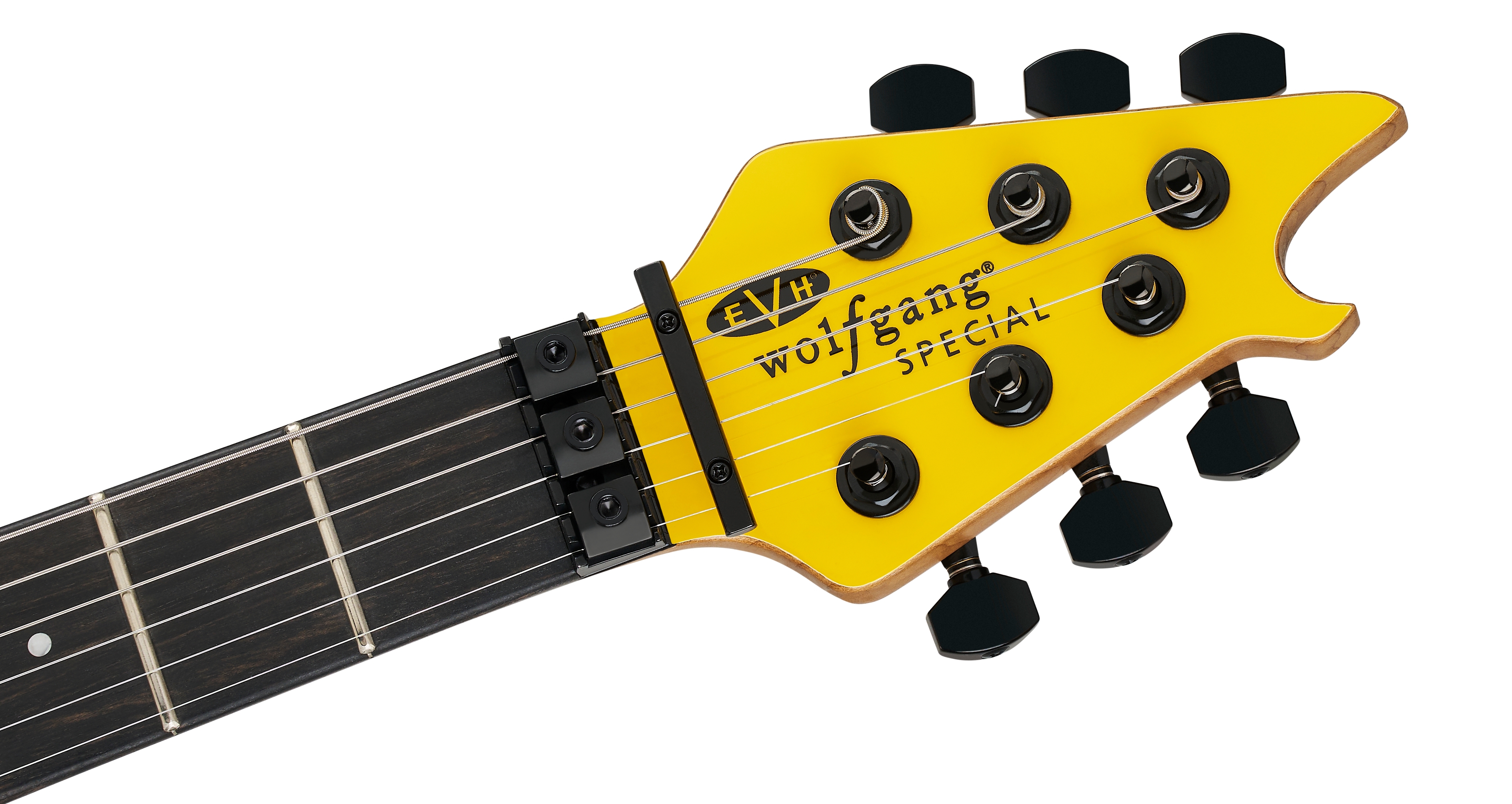

| Headstock | EVH® Wolfgang® |
Hardware
| Bridge | EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
|---|---|
| Hardware Finish | Black |
| Tremolo Arm | Floyd Rose® 1000 Series Locking |
| Tremolo Block | Brass |
| Tuning Machines | EVH®-Branded Gotoh® |
| Control Knobs | Black Knurled with White Indicator |
| Switch Tip | Black |
Miscellaneous
| Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
|---|---|
| Strap Buttons | Oversized |
| Case/Gig Bag | EVH® Striped Series Gig Bag (P/N 022-7742-100) Included; Optional EVH® Striped Hardshell (P/N 022-6100-506) |
Accessories
| Included Accessories | Tremolo Arm, Hex Keys & User Manual |
|---|
