Limited Edition Striped Series Frankenstein™ Frankie Aged Black and Yellow
The EVH Limited Edition Frankie Aged Black and Yellow Striped guitar captures the raw spirit and legendary tone that defined a generation of rock music. This meticulously crafted tribute to Eddie Van Halen's most famous instrument delivers authentic EVH performance with the unmistakable visual impact of the Frankie's iconic striped finish.

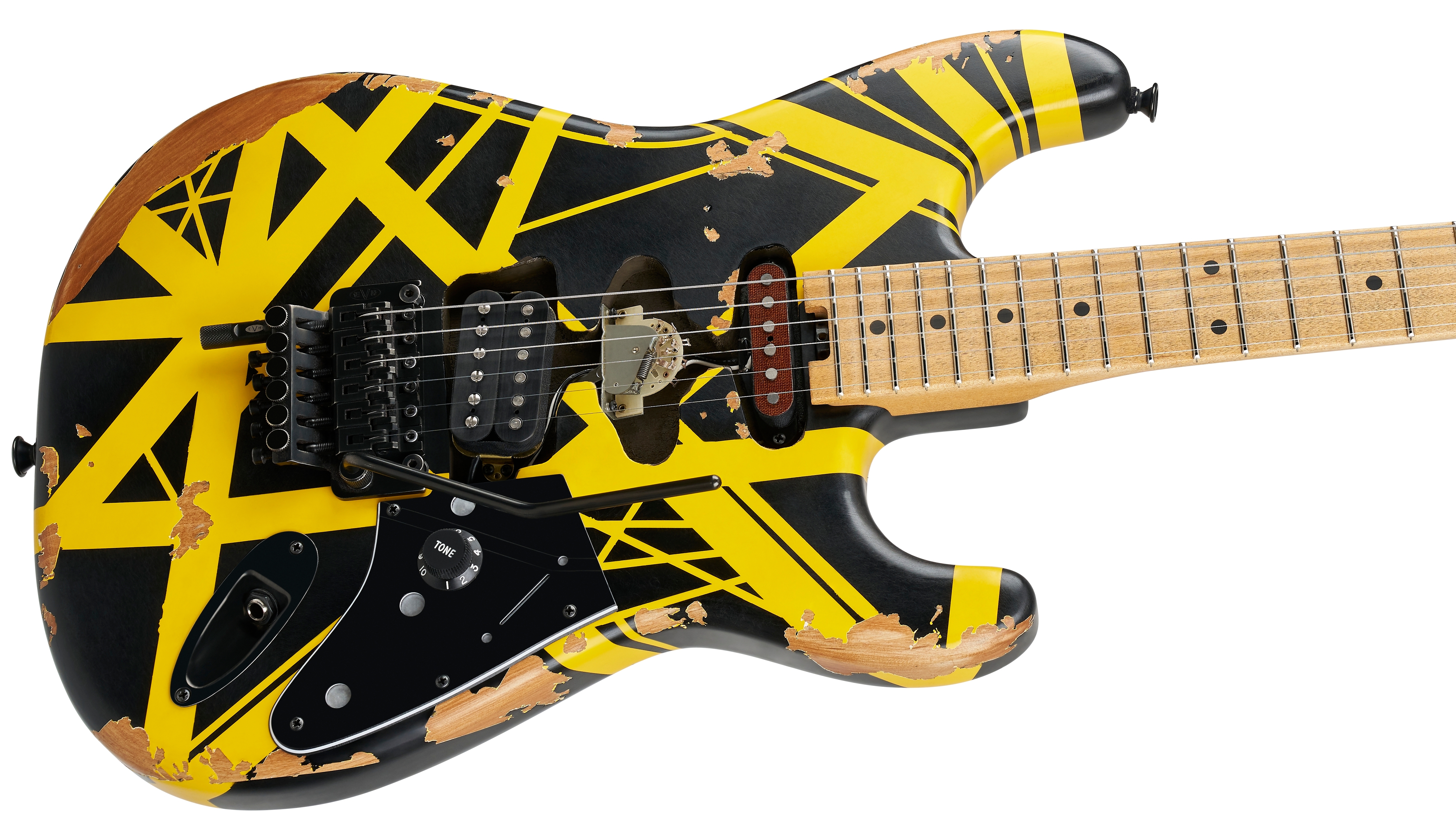

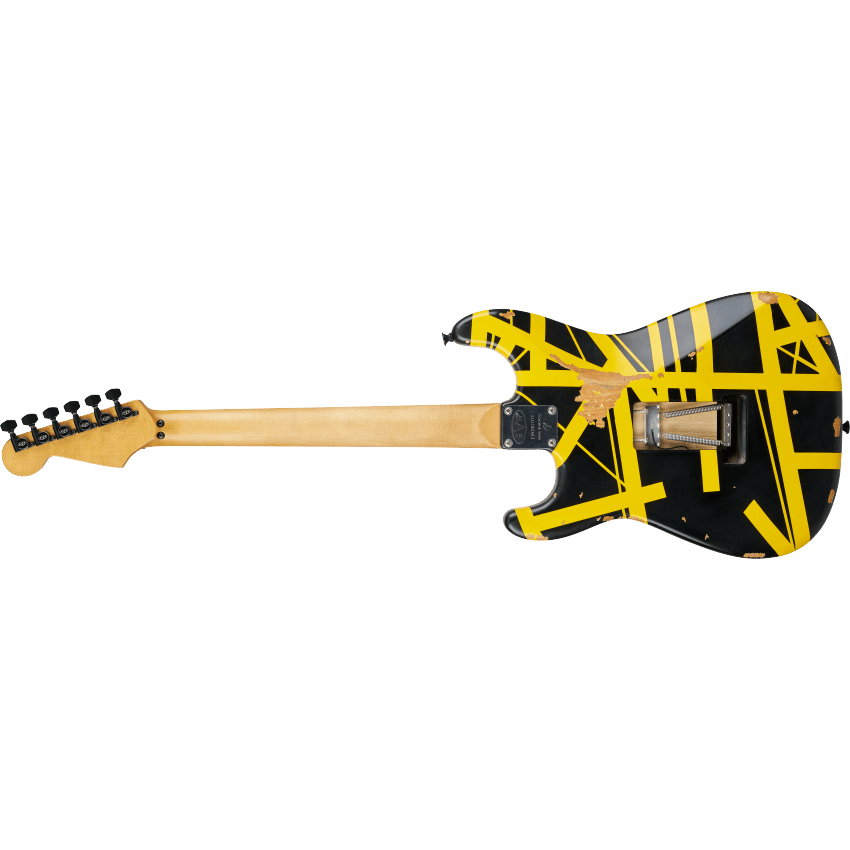

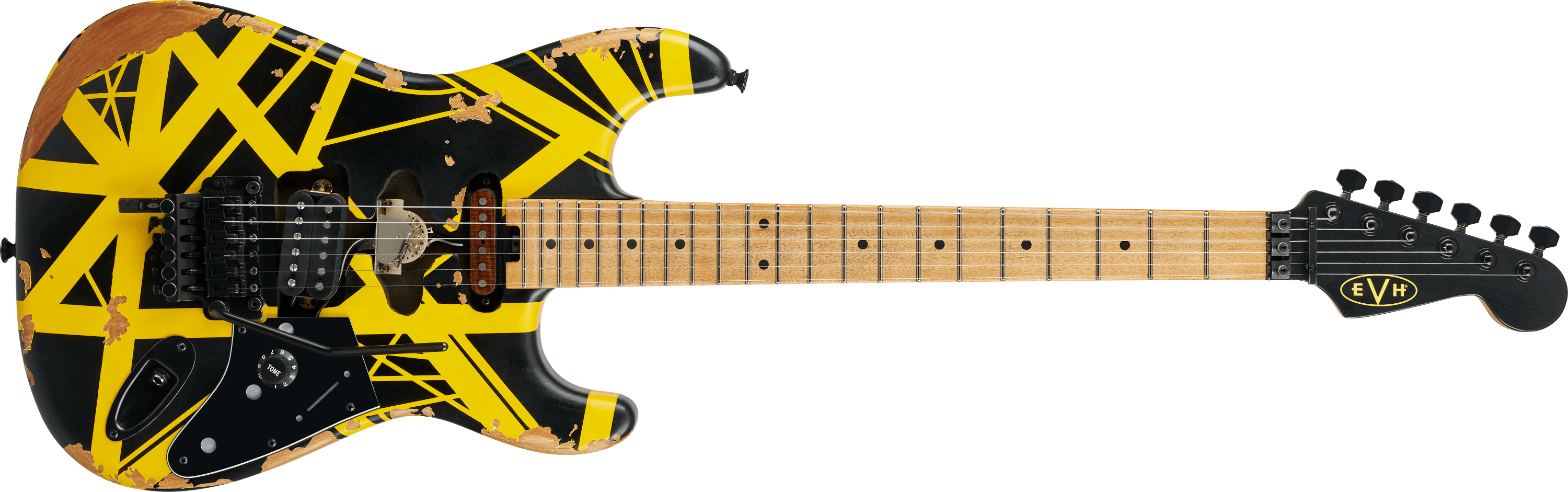

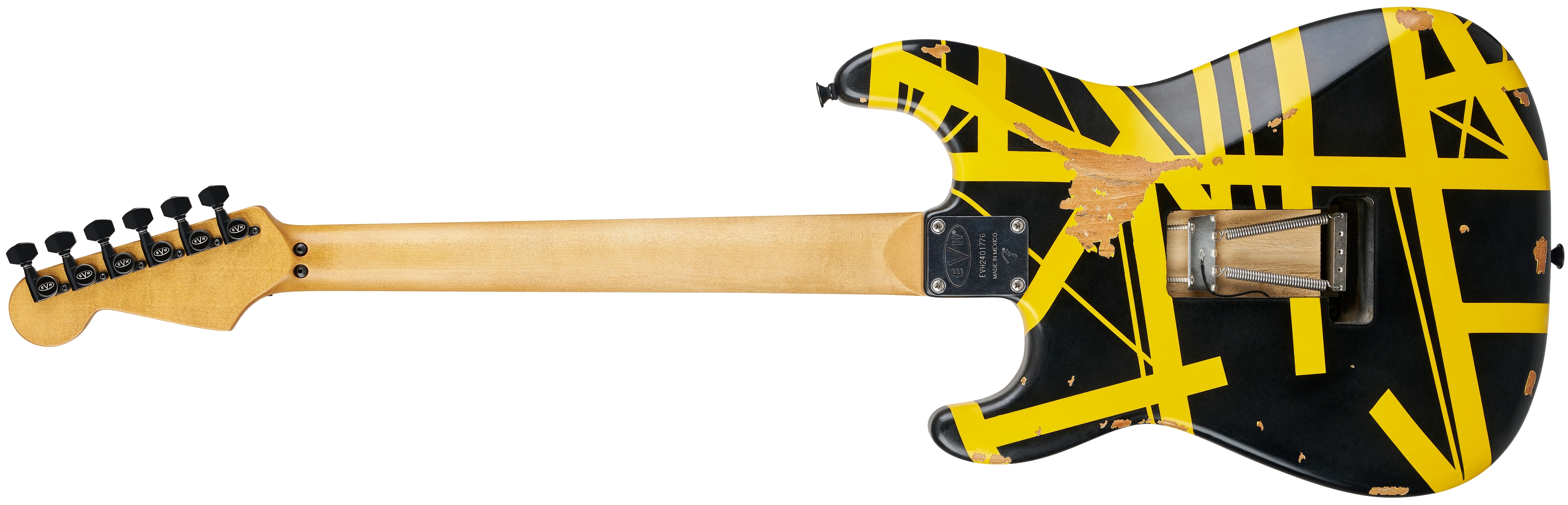

Sporting Eddie's black and yellow paint job and an aged look, the all-new Frankie features a basswood Stratocaster®-style body paired to a graphite-reinforced quartersawn maple neck. An oiled finish on the back of the neck allows for hours of playing comfort, while the 12"-16" compound radius maple fingerboard with 22 jumbo frets was designed for fast and furious playing styles.

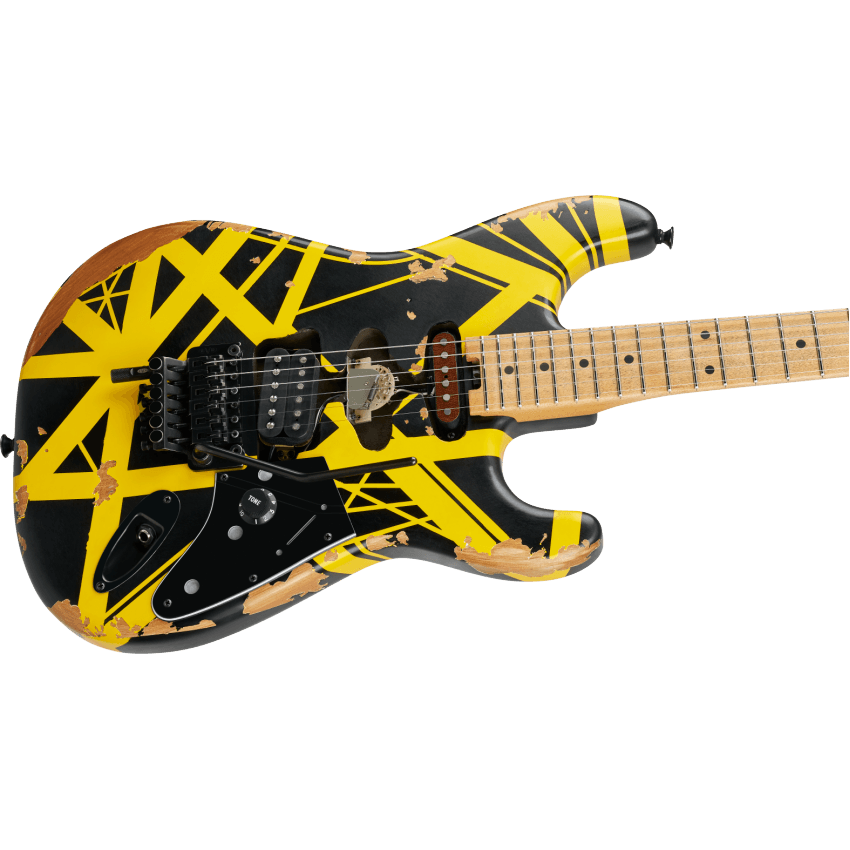

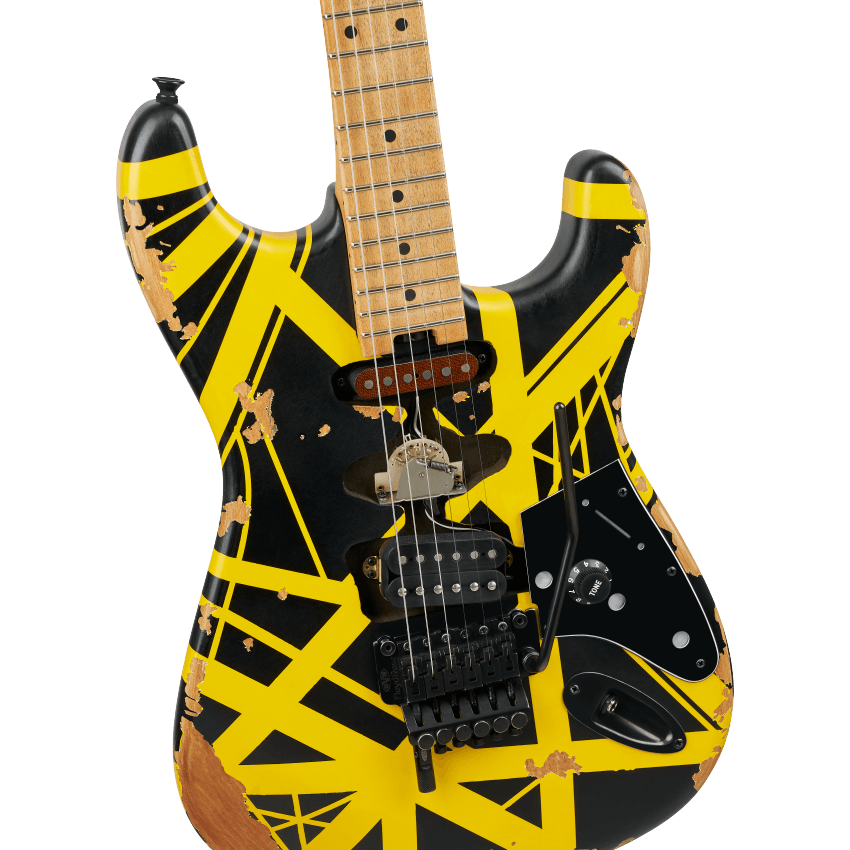

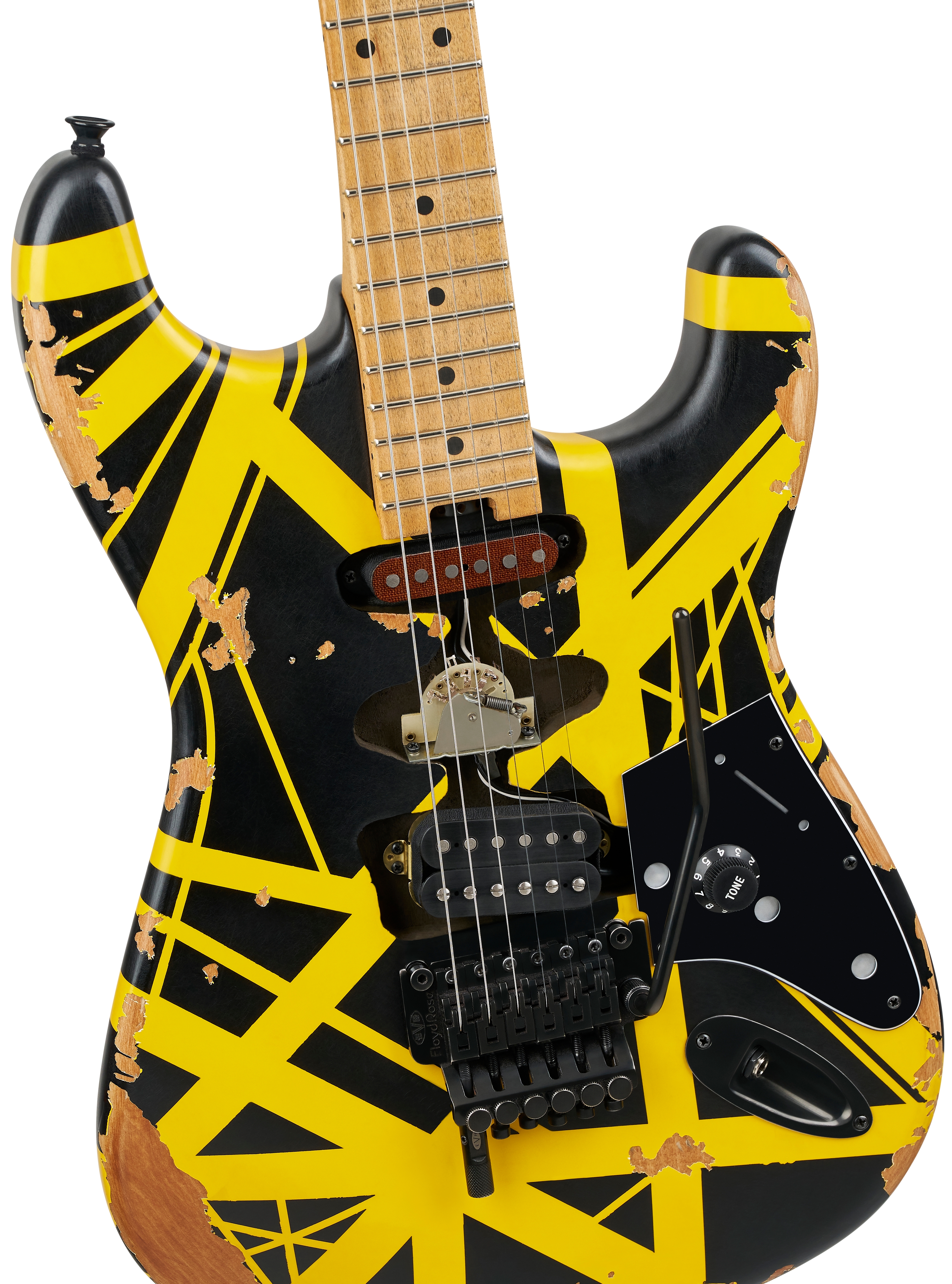

Routed for an HSS pickup configuration just like Eddie's original, Frankie features an EVH Wolfgang® humbucking bridge pickup with a red phenolic bobbin EVH Strat® neck pickup (selectable via push/push volume knob) and a dummy five-way blade housed in the middle position.

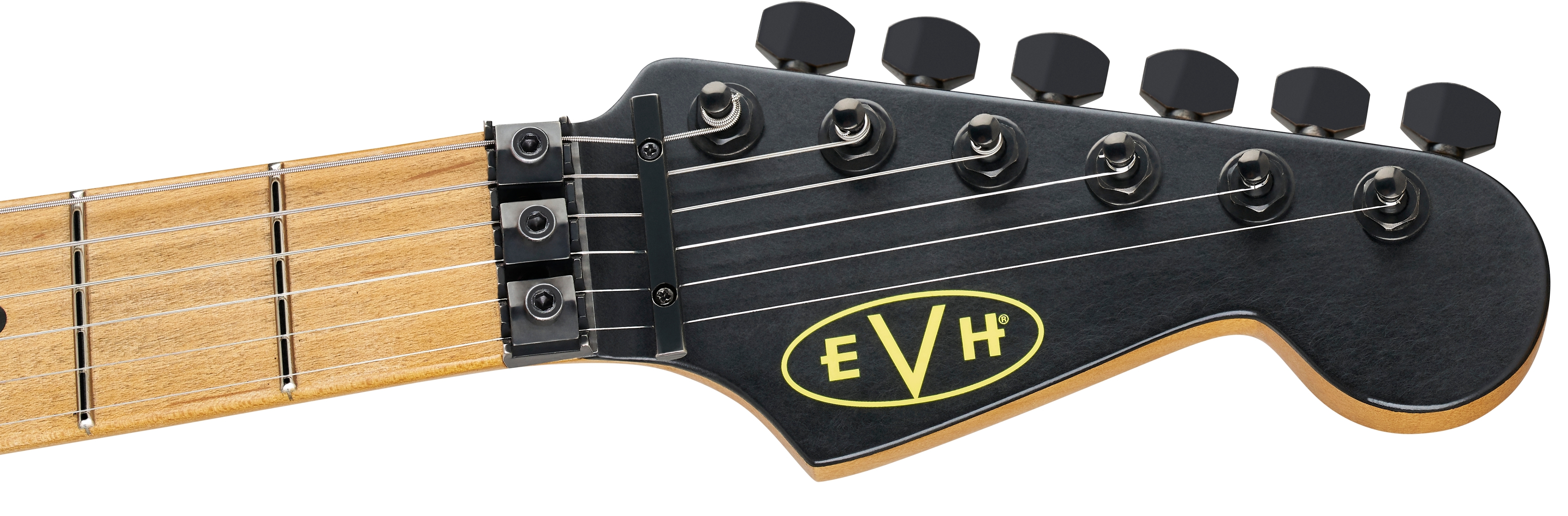

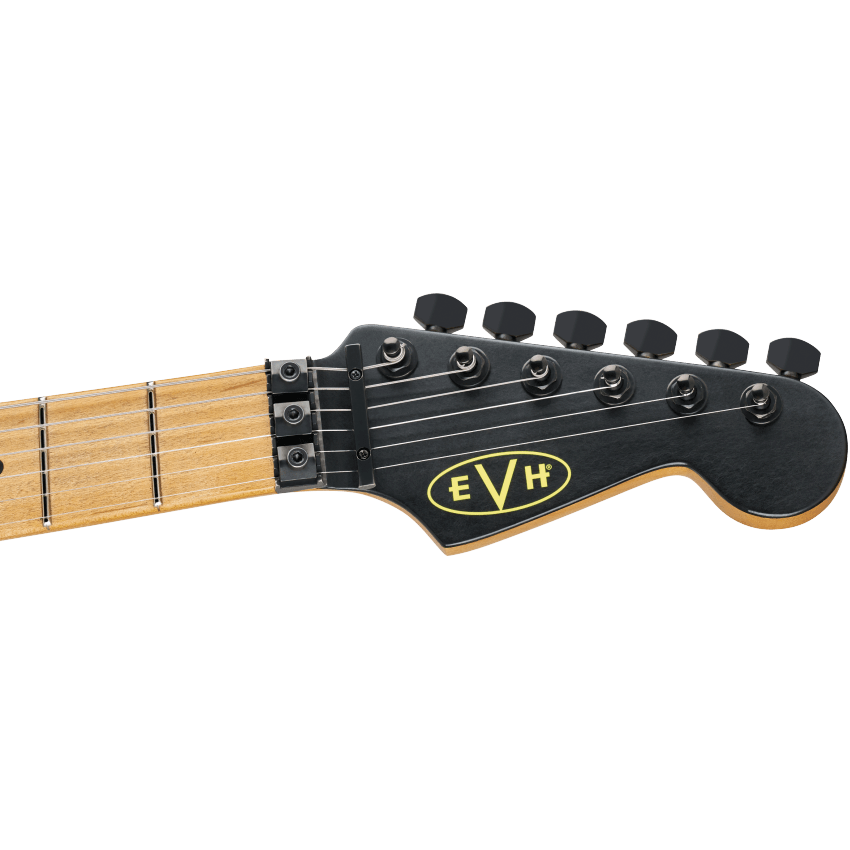

A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.
Other unique features include a black skirted Strat-style single push/push volume control knob (labeled "tone"), custom black pickguard, distressed black hardware, oversized strap buttons and EVH neck plate.
- Color Black with Yellow Stripes
- Model 5107900528
- Series Striped Series
-
United States of America $2,249.99 EST. U.S. STREET
Specs
General
| Model Number | 5107900528 |
|---|---|
| Series | Striped Series |
| Color | Black with Yellow Stripes |
| Number of Strings | 6 |
| Orientation | Right-Hand |
Body
| Body Finish | Satin Lacquer |
|---|---|
| Body Shape | Stratocaster® |
| Body Material | Basswood |
Electronics
| Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
|---|---|
| Middle Pickup | N/A |
| Neck Pickup | Dummy Strat® Pickup |
| Pickup Color | Black |
| Controls | Volume (Push/Push for Pickup Switching) |
| Pickup Switching | Push/Push: Down = Bridge Pickup, Up = Neck Pickup |
| Pickup Configuration | HSS |
Neck
| Neck Material | Quartersawn Maple |
|---|---|
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Thickness | .790" at 3rd fret & .825" at 12th fret |
| Neck Finish | Oiled |
| Neck Shape | EVH® Modified "C" Backshape |
| Scale Length | 25.5" (648 mm) |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Maple |
| Number of Frets | 22 |
| Fret Size | Jumbo |
| Nut Material | Floyd Rose® R3 Locking |
| Nut Width | 1.6875" (42.86 mm) |
| Position Inlays | Black Dot |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Truss Rod Wrench | 2.5 mm Hex |
| String Trees | Floyd Rose® Retainer Bar |
| Headstock | Licensed Fender® Stratocaster® |
| Neck Plate | 4-Bolt Standard |
Hardware
| Bridge | EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
|---|---|
| Hardware Finish | Black |
| Tremolo Arm | Floyd Rose® 1000 Series Locking |
| Tremolo Block | Brass |

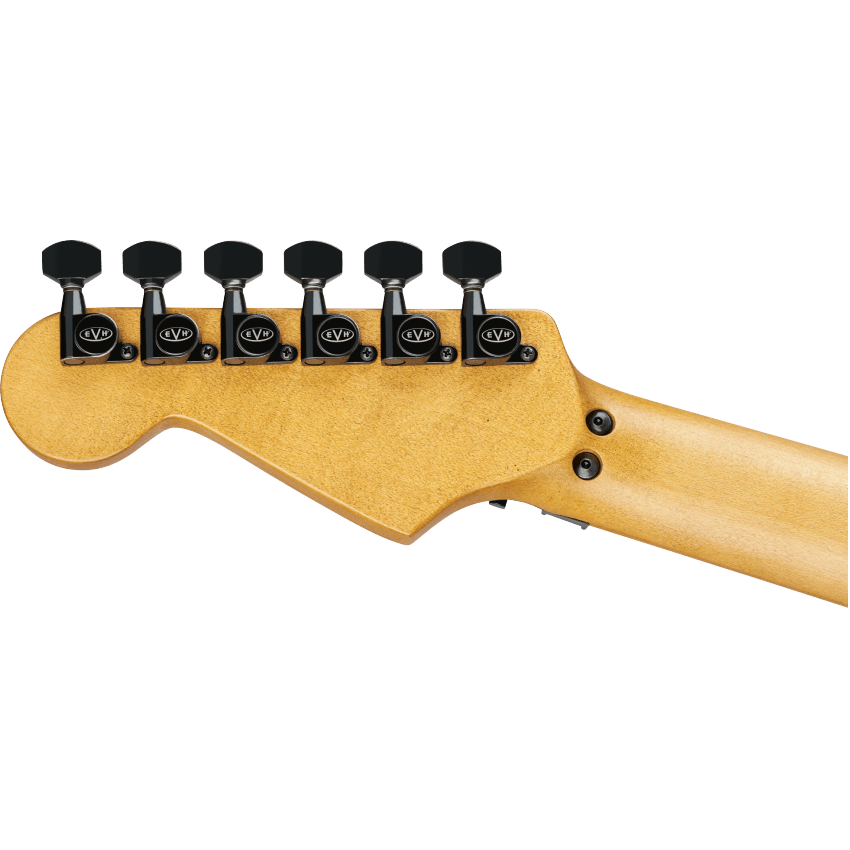

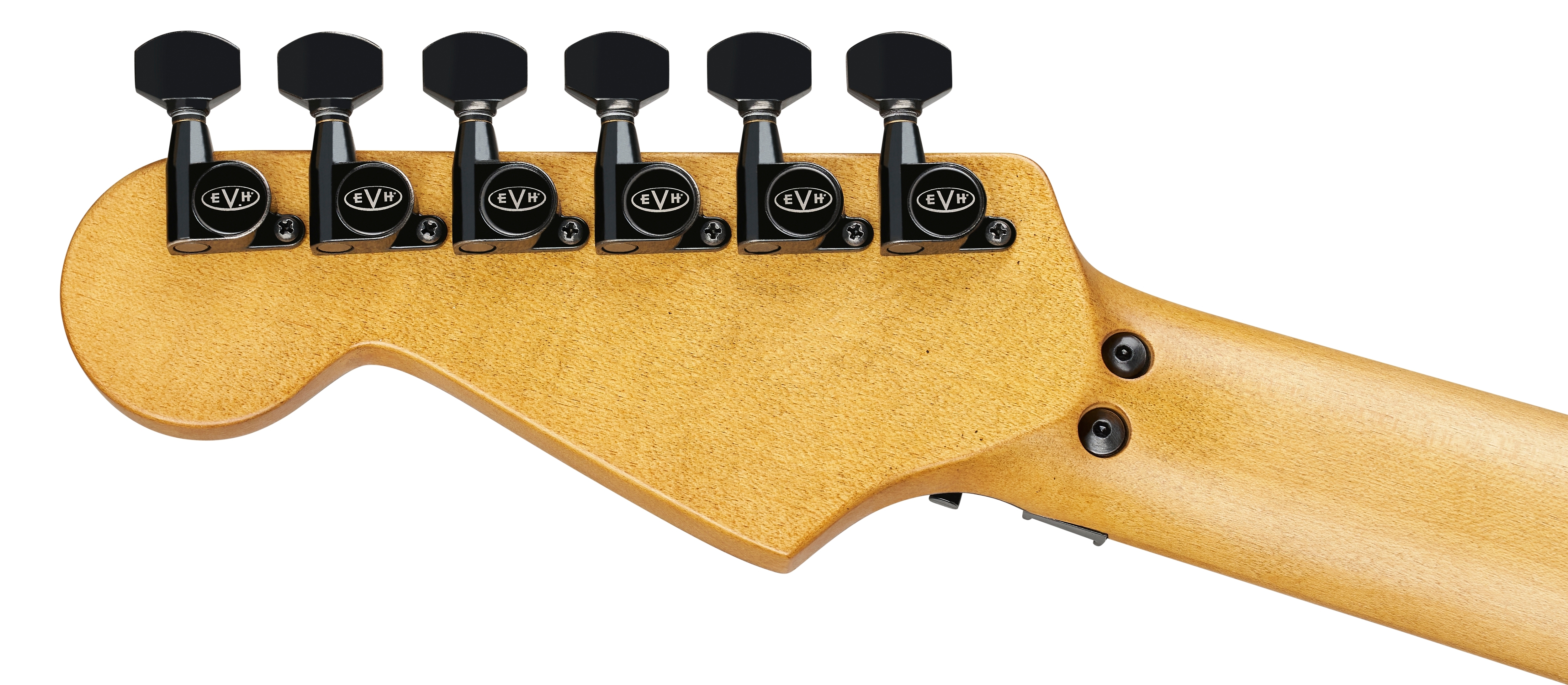

| Tuning Machines | EVH®-Branded Gotoh® |
| Pickguard | Black Custom Frankie |
| Control Knobs | Black Stratocaster®-Style Skirt (Labeled "Tone") |
Miscellaneous
| Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
|---|---|
| Strap Buttons | Oversized |
| Case/Gig Bag | EVH® Striped Series Gig Bag (P/N 022-7742-100) Included; Optional EVH® Striped Hardshell (P/N 022-6100-506) |
Accessories
| Included Accessories | Tremolo Arm, Hex Keys & User Manual |
|---|
